First Steps¶

Installing Python on your computer¶

If you haven’t already installed Python on your computer, see apdx1 , which includes instructions for installing Python on Macs running under MacOSX and on PCs running under Windows.

single: miniconda

Launching IPython¶

Once you have installed Python, open a shell and at the prompt type:

$ cd ~
$ mkdir testfold
$ cd testfold

which will make a new directory called testfold and change into it.

By typing short commands at the prompt, IPython can be used to perform various system tasks, such as running programs and creating and moving files around on your computer. This is a different kind of computer interface than the icon-based interface (or “graphical user interface” GUI) that you usually use to communicate with your computer. While it may seem more cumbersome for some tasks, it can be more powerful for other tasks, particularly those associated with programming.

Before getting started, we point out that like most modern computer languages, Python is case sensitive. That is, Python distinguishes between upper and lower case letters. Thus, two words spelled the same but having different letters capitalized are treated as different names in Python. Keep that in mind as we introduce different commands.

Testing your installation of Python¶

Running the Python program below tests your installation of Python to verify that the installation was successful. In particular, it tests that the NumPy, SciPy, and MatPlotLib libraries that are needed for this manual are properly installed. Now that you are in directory testfold, start a python session with:

$ jupyter  qtconsole &

The ‘&’ at the end ‘backgrounds’ the session and gives you back the bash prompt so you can type further commands.

Launch atom from the command line with the empty file name test_python.py:

$ atom test_python.py

Copy these lines into test_python.py You should input your first and last names inside the single quotes on lines 15 and 16, respectively. Save this file in atom.

# This code tests that your Python installation worked.
# It generates a png image file that you should e-mail
# to the address shown on the plot
import scipy as sp
import numpy as np
import matplotlib
import matplotlib.pyplot as plt
import platform
import socket

# If you are a student, please fill in your first and last
# names inside the quotes in the two lines below.  Do not
# modify anything else in this file

your_first_name = 'First'
your_last_name = 'Last'

# If you are an instructor, modify the next 3 lines.
# You do not need to modify anything else in this file.

classname = 'ATSC 301'
term = 'Fall_2016'      # must contain no spaces
email = 'paustin@eos.ubc.ca'

plt.plot([0,1], 'r', [1,0], 'b')
plt.text( 0.5, 0.8, '{0:s} {1:s}'
        .format(your_first_name, your_last_name),
        horizontalalignment='center',
        size = 'x-large',
        bbox=dict(facecolor='purple', alpha=0.4))
plt.text( 0.5, 0.1,
    '{1:s}\nscipy {2:s}\nnumpy {3:s}\nmatplotlib {4:s}\non {5:s}\n{6:s}'
        .format(
        classname,
        term,
        sp.__version__,
        np.__version__,
        matplotlib.__version__,
        platform.platform(),
        socket.gethostname()
        ) ,
    horizontalalignment='center'
    )
filename = your_last_name + '_' + your_first_name + '_' + term + '.png'
plt.title('*** E-mail the saved version of this plot, ***\n' +
    '"{0:s}" to {1:s}'.format(filename, email), fontsize=12)
plt.savefig(filename)
plt.show()

To run your saved file go to the IPython window and at the prompt type:

run test_python

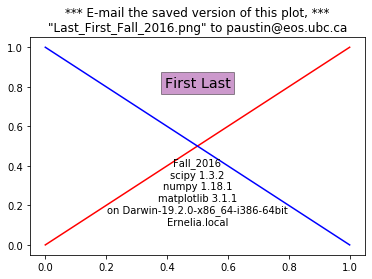

which should produce a plot that looks something like this:

To save this as a png file, type:

% matplotlib qt4

which switches from inline graphics to graphics that appear in a separate window. Type:

run test_python

again to get a windowed plot

Clicking on the floppy disk icon should prompt you for a file name to save the figure into.

IPython Basics¶

Magic Functions¶

pair: IPython; magic functions

IPython features a number of commands called “magic” commands that let you perform various useful tasks. There are two types of magic commands, line magic commands that begin with %—these are executed on a single line—and cell magic commands that begin with %%—these are executed on several lines. Here we will concern ourselves only with line magic commands.

The first thing to know about magic commands is that you can toggle (turn on and off) the need to use the % prefix for line magic commands by typing %automagic. By default, the Automagic switch is set to ON so you don’t need the % prefix. To set Automagic to OFF, simply type %automagic at the IPython prompt. Cell magic commands always need the %% prefix.

In what follows below, we assume that the Automagic switch is set to ON so we omit the % sign.

single: IPython; navigation commands

Navigation Commands¶

IPython recognizes several common navigation commands that are used under the Unix/Linux operating systems. In the IPython shell, these few commands work on Macs, PCs, and Linux machines.

At the IPython prompt, type cd ~ (i.e. “cd” – “space” – “tilde” , where tilde is found near the upper left part of most keyboards). This will set your computer to its home (default) directory. Next type pwd (print working directory) and press RETURN. The console should return the name of the current directory of your computer. It might look like this on a Mac:

In [2]: pwd
Out[2]: u'/Users/phil'

or this on a PC:

In [3]: pwd
Out[3]: C:\\Users\\phil

The responses Out[2]: u'/Users/phil' for the Mac and Out[3]: C:\\Users\\phil for the PC mean the the current directory is phil, which is a subdirectory of Users. Taken together /Users/phil on a Mac or C:\\Users\\phil on a PC is known as the path of the current directory. The path is just the name of a directory and the sequence of subdirectories in which it resides up to the root directory.

Typing cd .. (“cd” – “space” – two periods) moves the IPython shell up one directory in the directory tree, as illustrated by the set of commands below.

In [4]: cd ..
/Users

In [5]: pwd
Out[5]: u'/Users'

The directory moved up one from /Users/phil to /Users. Now type ls (list) and press RETURN. The console should list the names of the files and subdirectories in the current directory.

In [6]: ls
Shared/    phil/

In this case, there are only two directories (indicated by the slash) and not files. Type cd ~ again to return to your home directory and then type pwd to verify where you are in your directory tree. [Technically, ls isn’t a magic command, but typing it without the % sign lists the contents of the current directory, irrespective of whether Automagic is ON or OFF.]

Let’s create a directory within your documents directory that you can use to store your Python programs. We will call it PyProgs. First, return to your home directory by typing cd ~. To create directory PyProgs, type mkdir PyProgs (make directory). Type ls to confirm that you have created PyProgs and then type cd PyProgs to switch to that directory.

Now let’s say you want to return to the previous subdirectory, Documents or My Documents, which should be one up in the directory tree if you have followed along. Type cd .. and then type pwd. You should find that you are back in the previous directory, Documents or My Documents. If you type ls, you should see the new directory PyProgs that you just created.

More Magic Commands¶

single: IPython; magic commands

The most important magic command is %run filename where filename is the name of a Python program you have created. We haven’t done this yet but include it here just for reference. We will come back to this later.

Some other useful magic commands include %hist, which lists the recent commands issued to the IPython terminal, and %edit, which opens a new empty file in the code editor window. Typing %edit filename, will open the file filename if it exists in the current directory, or it will create a new file by that name if it does not, and will open it as a blank file in the code editor window.

There are a number of other magic commands. You can get a list of them by typing lsmagic.

%lsmagic

Available line magics:
%alias  %alias_magic  %autoawait  %autocall  %automagic  %autosave  %bookmark  %cat  %cd  %clear  %colors  %conda  %config  %connect_info  %cp  %debug  %dhist  %dirs  %doctest_mode  %ed  %edit  %env  %gui  %hist  %history  %killbgscripts  %ldir  %less  %lf  %lk  %ll  %load  %load_ext  %loadpy  %logoff  %logon  %logstart  %logstate  %logstop  %ls  %lsmagic  %lx  %macro  %magic  %man  %matplotlib  %mkdir  %more  %mv  %notebook  %page  %pastebin  %pdb  %pdef  %pdoc  %pfile  %pinfo  %pinfo2  %pip  %popd  %pprint  %precision  %prun  %psearch  %psource  %pushd  %pwd  %pycat  %pylab  %qtconsole  %quickref  %recall  %rehashx  %reload_ext  %rep  %rerun  %reset  %reset_selective  %rm  %rmdir  %run  %save  %sc  %set_env  %store  %sx  %system  %tb  %time  %timeit  %unalias  %unload_ext  %who  %who_ls  %whos  %xdel  %xmode

Available cell magics:
%%!  %%HTML  %%SVG  %%bash  %%capture  %%debug  %%file  %%html  %%javascript  %%js  %%latex  %%markdown  %%perl  %%prun  %%pypy  %%python  %%python2  %%python3  %%ruby  %%script  %%sh  %%svg  %%sx  %%system  %%time  %%timeit  %%writefile

Automagic is ON, % prefix IS NOT needed for line magics.

There are a lot of magic commands, most of which we don’t need right now. We will introduce them in the text as needed.

System shell commands¶

You can also run system shell commands from the IPython shell by typing ! followed by a system shell command. For Macs running OSX and for Linux machines, this means that Unix (or equivalently Linux) commands can be issued from the IPython prompt. For PCs, this means that Windows (DOS) commands can be issued from the IPython prompt. For example, typing !ls (list) and pressing RETURN lists all the files in the current directory on a Mac. Typing !dir on a PC does essentially the same thing (note that system shell commands in Windows are not case sensitive).

Tab completion¶

IPython also incorporates a number of shortcuts that make using the shell more efficient. One of the most useful is tab completion. Let’s assume you have been following along and that your are in the directory Documents or My Documents. To switch to the directory PyProgs, you could type cd PyProgs. Instead of doing that, type cd PyP and then press the TAB key. This will complete the command, provided there is no ambiguity in how to finish the command. In the present case, that would mean that there was no other subdirectory beginning with PyP. Tab completion works with any command you type into the IPython terminal. Try it out! It will make your life more wonderful.

A related shortcut involves the \(\uparrow\) key. If you type a command, say cd and then to press the \(\uparrow\) key, IPython will complete the cd command with the last instance of that command. Thus, when you launch IPython, you can use this shortcut to take you to the directory you used when you last ran IPython.

You can also simply press the \(\uparrow\) key, which will simply recall the most recent command. Repeated application of the \(\uparrow\) key scrolls though the most recent commands in reverse order. The \(\downarrow\) key can be used to scroll in the other direction.

Recap of commands¶

Let’s recap the (magic) commands introduced above:

pwd:
(print working directory) Prints the path of the current directory.

ls:
(list) Lists the names of the files and directories located in the current directory.

mkdir filename:
(make directory) Makes a new directory filename.

cd directoryname:
(change directory) Changes the current directory to directoryname. Note: for this to work, directoryname must be a subdirectory in the current directory. Typing cd ~ changes to the home directory of your computer. Typing cd .. moves the console one directory up in the directory tree.

clear:
Clears the IPython screen of previous commands.

run filename:
Runs (executes) a Python script. Described later in the section chap2:ScriptExmp1

Tab completion:
Provides convenient shortcuts, with or without the arrow keys, for executing commands in the IPython shell.

Interactive Python as a calculator¶

You can use the IPython shell to perform simple arithmatic calculations. For example, to find the product \(3\times 15\), you type 3*15 at the In prompt and press RETURN:

3*15

Python returns the correct product, as expected. You can do more complicated calculations:

6+21/3

13.0

Let’s try some more arithmetic:

(6+21)/3

9.0

Notice that the effect of the parentheses in In [4]: (6+21)/3 is to cause the addition to be performed first and then the division. Without the parentheses, Python will always perform the multiplication and division operations before performing the addition and subtraction operations. The order in which arithmetic operations are performed is the same as for most calculators: exponentiation first, then multiplication or division, then addition or subtraction, then left to right.

Binary arithmetic operations in Python¶

The table below lists the binary arithmatic operations in Python. It has all the standard binary operators for arithmetic, plus a few you may not have seen before.

Operation Symbol Example Output

addition + 12+7 19

subtraction - 12-7 5

multiplication * 12*7 84

division / 12/7 1.714285

floor division // 12//7 1

remainder % 12%7 5

exponentiation ** 12**7 35831808

Floor division, designated by the symbols //, means divide and keep only the integer part without rounding. Remainder, designated by the symbols %, gives the remainder of after a floor division.

Warning¶

Integer division is different in Python 2 and 3¶

One peculiarity of all versions of Python prior to version 3 is that dividing two integers by each other yields the “floor division” result—another integer. Therefore 12/7 yields 1 whereas 12./7 or 12/7. or 12./7. all yield 1.714285. Starting with version 3 of Python, all of the above expressions, including 3/2 yield 1.714285. Unfortunately, we are using version 2.7 of Python so 12/7 yields 1. You can force versions of Python prior to version 3 to divide integers like version 3 does by typing

from __future__ import division

at the beginning of an IPython session. You only need to type it once and it works for the entire session.

Types of numbers¶

There are four different types of numbers in Python: plain integers, long integers, floating point numbers, and complex numbers.

Plain integers, or simply integers, are 32 bits (binary digits) long, which means they extend from \(-2^{31}=-2147483648\) to \(2^{31}-1=2147483647\). One bit is used to store the sign of the integer so there are only 31 bits left—hence, the power of 31. In Python, a number is automatically treated as an integer if is written without a decimal point and it is within the bounds given above. This means that 23, written without a decimal point, is an integer and 23., written with a decimal point, is a floating point number. If an integer extends beyond the bounds of a simple integer, the it becomes a long integer, and is designated as such by an L following the last digit. Here are some examples of integer arithmetic:

12*3

4+5*6-(21*8)

-134

11/5

2.2

11//5

9734828*79372    # product of these two large integers is a long integer

# Note: This behaviour is not true as of Python 3, and an integer will
# always be as large as it needs to be, as shown below -- Loren.

772672768016

For the binary operators +, -, *, and //, the output is an integer if the inputs are integers. The only exception is if the result of the calculation is out of the bounds of Python integers, in which case Python automatically converts the result to a long integer. The output of the division operator / is a floating point as of version 3 of Python. If an integer output is desired when two integers are divided, the floor division operator // must be used.

Floating point numbers are essentially rational numbers and can have a fractional part; integers, by their very nature, have no fractional part. In most versions of Python running on PCs or Macs, floating point numbers go between approximately \(\pm 2 \times 10^{-308}\) and \(\pm 2 \times 10^{308}\). Here are some examples of floating point arithmetic:

12.*3.

36.0

123.4*(-53.9)/np.sqrt(5.)

-2974.53389920505

11./5.

2.2

11.//5.

2.0

11.%5.

1.0

6.022e23*300.

1.8066e+26

Note that the result of any operation involving only floating point numbers as inputs is a real number, even in the cases where the floor division // or remainder % operators are used. The last output also illustrates an alternative way of writing floating point numbers as a mantissa followed by and e or E followed by a power of 10: so 1.23e-12 is equivalent to \(1.23 \times 10^{-12}\).

We also sneaked into our calculations sqrt, the square root function. We will have more to say about functions in a few pages.

Complex numbers are written in Python as a sum of a real and imaginary part. For example, the complex number \(3-2i\) is represented as 3-2j in Python where j represents \(\sqrt{-1}\). Here are some examples of complex arithmetic:

(2+3j)*(-4+9j)

(-35+6j)

(2+3j)/(-4+9j)

(0.1958762886597938-0.3092783505154639j)

np.sqrt(-3)

/Users/lorenoh/.local/conda/lib/python3.6/site-packages/ipykernel_launcher.py:1: RuntimeWarning: invalid value encountered in sqrt
  """Entry point for launching an IPython kernel.

nan

np.sqrt(-3+0j)

1.7320508075688772j

Notice that to obtain the expected result or \(\sqrt{-3}\), you must write the argument of the square root function as a complex number. Otherwise, Python returns nan (not a number).

If you multiply an integer by a floating point number, the result is a floating point number. Similarly, if you multiply a floating point number by a complex number, the result is a complex number. Python always promotes the result to the most complex of the inputs.

Python Modules¶

The Python computer language consists of a “core” language plus a vast collection of supplementary software that is contained in modules. Many of these modules come with the standard Python distribution and provide added functionality for performing computer system tasks. Other modules provide more specialized capabilities that not every user may want. You can think of these modules as a kind of library from which you can borrow according to your needs.

We will need three Python modules that are not part of the core Python distribution, but are nevertheless widely used for scientific computing. The three modules are

NumPy
is the standard Python package for scientific computing with Python. It provides the all-important array data structure, which is at the very heart of NumPy. In also provides tools for creating and manipulating arrays, including indexing and sorting, as well as basic logical operations and element-by-element arithmetic operations like addition, subtraction, multiplication, division, and exponentiation. It includes the basic mathematical functions of trigonometry, exponentials, and logarithms, as well vast collection of special functions (Bessel functions, etc.), statistical functions, and random number generators. It also includes a large number of linear algebra routines that overlap with those in SciPy, although the SciPy routines tend to be more complete. You can find more information about NumPy at http://docs.scipy.org/doc/numpy/reference/index.html.

SciPy
provides a wide spectrum of mathematical functions and numerical routines for Python. SciPy makes extensive use of NumPy arrays so when you import SciPy, you should always import NumPy too. In addition to providing basic mathematical functions, SciPy provides Python “wrappers” for numerical software written in other languages, like Fortran, C, or C++. A “wrapper” provides a transparent easy-to-use Python interface to standard numerical software, such as routines for doing curve fitting and numerically solving differential equations. SciPy greatly extends the power of Python and saves you the trouble of writing software in Python that someone else has already written and optimized in some other language. You can find more information about SciPy at http://docs.scipy.org/doc/scipy/reference/.

MatPlotLib
is the standard Python package for making two and three dimensional plots. MatPlotLib makes extensive use of NumPy arrays. You will make all of your plots in Python using this package. You can find more information about MatPlotLib at http://MatPlotLib.sourceforge.net/.

We will use these three modules extensively and therefore will provide introductions to their capabilities as we develop Python in this manual. The links above provide much more extensive information and you will certainly want to refer to them from time to time.

These modules, NumPy, MatPlotLib, and SciPy, are built into the IPython shell so we can use them freely in that environment. Later, when we introduce Python programs (or scripts), we will see that in those cases you must explicitly load these modules using the import command to have access to them.

Finally, we note that you can write your own Python modules. They are a convenient way of packaging and storing Python code so that you can reuse it. We defer learning about how to write modules until after we have learned about Python.

Python functions: a first look¶

A function in Python is similar to a mathematical function. In consists of a name and one or more arguments contained inside parentheses, and it produces some output. For example, the NumPy function sin(x) calculates the sine of the number x (where x is expressed in radians). Let’s try it out in the IPython shell:

np.sin(0.5)

0.479425538604203

The argument of the function can be a number or any kind of expression whose output produces a number. For example, the function log(x) calculates the natural logarithm of x. All of the following expressions are legal and produce the expected output:

np.log(np.sin(0.5))

-0.7351666863853142

np.log(np.sin(0.5)+1.0)

0.3916538628347176

np.log(5.5/1.2)

1.5224265354444708

Some NumPy functions¶

NumPy includes an extensive library of mathematical functions. In the table below, we list some of the most useful ones. A much more complete list is available at http://docs.scipy.org/doc/numpy/reference/ufuncs.html#math-operations.

Function Description

sqrt(x) Square root of x

exp(x) Exponential of x, i.e. e^x

log(x) Natural log of x, i.e. ln x

log10(x) Base 10 log of x

degrees(x) Converts x from radians to degrees

radians(x) Converts x from degrees to radians

sin(x) Sine of x (x in radians)

cos(x) Cosine x (x in radians)

tan(x) Tangent x (x in radians)

arcsin(x) Arc sine (in radians) of x

arccos(x) Arc cosine (in radians) of x

arctan(x) Arc tangent (in radians) of x

fabs(x) Absolute value of x

round(x) Rounds a float to nearest integer

floor(x) Rounds a float down to nearest integer

ceil(x) Rounds a float up to nearest integer

sign(x) -1 if x < 0, +1 if x > 0, 0 if x = 0

The functions discussed here all have one input and one output. Python functions can, in general, have multiple inputs and multiple outputs. We will discuss these and other features of functions later when we take up functions in the context of user-defined functions.

Keyword arguments¶

In addition to regular arguments, Python functions can have keyword arguments (kwargs). Keyword arguments are optional arguments that need not be specified when a function is called. See chap5BasicPlotting for examples of the use of keyword arguments. For the moment, we don’t need them so we defer a full discussion of keyword arguments until we introduce them in the section on userDefdFuncs.

Variables¶

Names and the assignment operator¶

single: variable single: assignment operator

A variable is a name that is used to store data. It can be used to store different kinds of data, but here we consider the simplest case where the data is a single numerical value. Here are a few examples:

a = 23

p, q = 83.4, np.sqrt(2)

The equal sign “=” is the assignment operator. In the first statement, it assigns the value of 23 to the variable a. In the second statement it assigns a value of 83.4 to p and a value of 1.4142135623730951 to q. To be more precise, the name of a variable, such as a, is associated with a memory location in your computer; the assignment variable tells the computer to put a particular piece of data, in this case a numerical value, in that memory location. Note that Python stores the numerical value, not the expression used to generate it. Thus, q is assigned the 17-digit number 1.4142135623730951 generated by evaluating the expression sqrt(2), not with \(\sqrt{2}\). (Actually the value of q is stored as a binary, base 2, number using scientific notation with a mantissa and an exponent.)

Suppose we write

b = a

In this case Python associates a new memory location with the name b, distinct from the one associated with a, and sets the value stored at that memory location to 23, the value of a. The following sequence of statements demonstrate that fact. Can you see how? Notice that simply typing a variable name and pressing Return prints out the value of the variable.

a = 23

b = a

a = 12

The assignment variable works from right to left; that is, it assigns the value of the number on the right to the variable name on the left. Therefore, the statement “5=a” makes no sense in Python. The assignment operator “=” in Python is not equivalent to the equals sign “\(=\)” we are accustomed to in algebra.

The assignment operator can be used to increment or change the value of a variable

b = b + 1

The statement, b = b+1 makes no sense in algebra, but in Python (and most computer languages), it makes perfect sense: it means “add 1 to the current value of b and assign the result to b.” This construction appears so often in computer programming that there is a special set of operators to perform such changes to a variable: +=, -=, *=, and /=. Here are some examples of how they work:

c , d = 4, 7.92

c += 2

c *= 3

d /= -2

-3.96

d -= 4

-7.96

Verify that you understand how the above operations work.

Legal and recommended variable names¶

Variable names in Python must start with a letter, and can be followed by as many alphanumeric characters as you like. Spaces are not allowed in variable names. However, the underscore character “_” is allowed, but no other character that is not a letter or a number is permitted.

Recall that Python is case sensitive, so the variable a is distinct from the variable A.

We recommend giving your variables descriptive names as in the following calculation:

distance = 34.

time_traveled = 0.59

velocity = distance / time_traveled

velocity

57.6271186440678

The variable names distance, time_traveled, and velocity immediately remind you of what is being calculated here. This is good practice. But so is keeping variable names reasonably short, so don’t go nuts!

Reserved words in Python¶

There are also some names or words that are reserved by Python for special purposes or functions. You must avoid using these names, which are provided here for your reference:

and del from not while

as elif global or with

assert else if pass yield

break except import print

class exec in raise

continue finally is return

def for lambda try

In addition, you should not use function names, like sin, cos, and sqrt, defined in the SciPy, NumPy, or any other library that you are using.

Script files and programs¶

Performing calculations in the IPython shell is handy if the calculations are short. But calculations quickly become tedious when they are more than a few lines long. If you discover you made a mistake at some early step, for example, you may have to go back and retype all the steps subsequent to the error. The solution to this problem is to save your code in a file. Saving code in a file means you can just correct the error and rerun the code without having to retype it. Saving code can also be useful if you want to reuse it later, perhaps with different inputs.

When we save code in a computer file, we call the sequence of commands stored in the file a script or a program or sometimes a routine. Programs can become quite sophisticated and complex. Here we are only going to introduce the simplest features of programming by writing a very simple script. Much later, we will introduce some of the more advanced features of programming.

Tab Completion¶

To write a script you need a text editor. In principle, any text editor will do, but it’s more convenient to use an editor that was designed for the task. We are going to use the Code Editor in the Spyder window that appears when you launch Spyder. This editor, like most good programming editors, provides syntax highlighting, which color codes key words, comments, and other features of the Python syntax according to their function, and thus makes it easier to read the code and easier to spot programming mistakes. The Canopy code editor also provides syntax checking, much like a spell-checker in a word processing program, that identifies many coding errors. This can greatly speed the coding process. Tab completion also work.

Scripting Example 1¶

Let’s work through an example to see how scripting works. Suppose you are going on a road trip and you would like to estimate how long the drive will take, how much gas you will need, and the cost of the gas. It’s a simple calculation. As inputs, you will need the distance of the trip, your average speed, the cost of gasoline, and the mileage of your car.

Writing a script to do these calculations is straightforward. First, launch Spyder and open the code editor. Enter the following in the editor pane:

# Calculates time, gallons of gas used, and cost of gasoline for
# a trip
distance = 400.         # miles
mpg = 30.               # car mileage
speed = 60.             # average speed
costPerGallon = 4.10    # price of gas

time = distance / speed
gallons = distance / mpg
cost = gallons * costPerGallon

The number (or hash) symbol # is the “comment” character in Python; anything on a line following # is ignored when the code is executed. Judicious use of comments in your code will make your code much easier to understand days, weeks, or months after the time you wrote it. Use comments generously.

Python ignores blank spaces or “white space” as it is sometimes called. The statement costPerGallon = 4.10 in the above program could equally well be written as costPerGallon=4.10 without the spaces before and after the = assignment operator; either way the statement means the same thing. Similarly, the white space after costPerGallon = 4.10 but before the comment (hash) symbol is also ignored by Python. The idea is that you should use white space to make your program more readable.

Now you are ready to run the code.

In [1]: cd ~/Documents/PyProgs/

To run or execute a script, simply type run filename, which in this case means type run myTrip.py. When you run a script, Python simply executes the sequence of commands in the order they appear.

In [2]: run myTrip.py

Once you have run the script, you can see the values of the variables calculated in the script simply by typing the name of the variable. IPython responds with the value of that variable.

In [3]: time
Out[3]: 6.666666666666667

In [4]: gallons
Out[4]: 13.333333333333334

In [5]: cost
Out[5]: 54.666666666666664

You can change the number of digits IPython displays using the command %precision:

In [6]: %precision 2
Out[6]: u'%.2f'

In [7]: time
Out[7]: 6.67

In [8]: gallons
Out[8]: 13.33

In [9]: cost
Out[9]: 54.67

Typing %precision returns IPython to its default state; %precision %e causes IPython to display numbers in exponential format (scientific notation).

Note about printing¶

If you want your script to return the value of a variable (that is, print the value of the variable to your computer screen), use the print function. For example, at the end of our script, if we include the code

print(time)
print(gallons)
print(cost)

the script will return the values of the variables time, gallons, and cost that the script calculated. We will discuss the print function in much greater detail, as well as other methods for data output, in Chapter 4 on chap4.

Scripting Example 2¶

Let’s try another problem. Suppose you want to find the distance between two Cartesian coordinates \((x_1, y_1, z_1)\) and \((x_2, y_2, z_2)\). The distance is given by the formula

\[\Delta r = \sqrt{(x_2-x_1)^2+(y_2-y_1)^2+(z_2-z_1)^2}\]

Now let’s write a script to do this calculation and save it in a file called twoPointDistance.py.

# Calculates the distance between two 3d Cartesian coordinates
import numpy as np

x1, y1, z1 = 23.7, -9.2, -7.8
x2, y2, z2 = -3.5, 4.8, 8.1

dr = np.sqrt( (x2-x1)**2 + (y2-y1)**2 + (z2-z1)**2 )

We have introduced extra spaces into some of the expressions to improve readability. They are not necessary; where and whether you include them is largely a matter of taste.

There are two important differences between the code above and the commands we would have written into the IPython console to execute the same set of commands. The first is the statement on the second line

...
import numpy as np
...

and the second is the “np.” in front of the sqrt function on the last line. If you leave out the import numpy as np line and remove the np. in front of the sqrt function, you will get the following error message

dr = sqrt( (x2-x1)**2 + (y2-y1)**2 + (z2-z1)**2 )

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
<ipython-input-54-ba9cb0cdf572> in <module>
----> 1 dr = sqrt( (x2-x1)**2 + (y2-y1)**2 + (z2-z1)**2 )

NameError: name 'sqrt' is not defined

The reason for the error is that the sqrt function is not a part of core Python. But it is a part of the NumPy module discussed earlier. To make the NumPy library available to the script, you need to add the statement import numpy as np. Then, when you call a NumPy function, you need to write the function with the np. prefix. Failure to do either will result in a error message. Now we can run the script.

In [10]: run twoPointDistance.py
In [11]: dr
Out[11]: 34.48

The script works as expected.

The reason we do not have to import NumPy when working in the IPython shell is that it is done automatically when the IPython shell is launched. Similarly, the package MatPlotLib is also automatically loaded (imported) when IPython is launched. However, when a script or program is executed, it is run on its own outside the IPython shell, even if the command to run the script is executed from the IPython shell.

Line continuation¶

From time to time, a line of code in a script will be unusually long, which can make the code difficult to read. In such cases, it is advisable to split the code onto several lines. For example, line 7 in the preceding script could be written as

dr = np.sqrt( (x2-x1)**2
            + (y2-y1)**2
            + (z2-z1)**2 )

You can generally continue an expression on another line in Python for code that is within a function argument, as it is here where the line is split inside the argument of the square root function. Note that the sub-expressions written on different lines are lined up. This is done solely to improve readability; Python does not require it. Nevertheless, as the whole point of splitting a line is to improve readability, it’s best to line up expressions so as to maximize readability.

You can split any Python line inside of parentheses, brackets, and braces, as illustrated above. You can split it other places as well by using the backslash (\) character. For example, the code

a = 1 + 2 \
  + 3 + 4

is equivalent to

a = 1 + 2 + 3 + 4

So you can use backslash character (\) of explicit line continuation when implicit line continuation won’t work.

Importing Modules¶

single: module; importing

We saw in Example 2 in the last section that we needed to import the NumPy module in order to use the sqrt function. Indeed the NumPy library contains many useful functions, some of which are listed in section chap2:NumPyFuncs. Whenever any NumPy functions are used, the NumPy library must be loaded using an import statement.

There are a few ways to do this. The one we generally recommend is to use the import as implementation that we used in Example 2. For the main NumPy and MatPlotLib libraries, this is implemented as follows:

import numpy as np
import maplotlib.pyplot as plt

These statements import the entire library named in the import statement and associate a prefix with the imported library: np and plt in the above examples. Functions from within these libraries are then called by attaching the appropriate prefix with a period before the function name. Thus, the functions sqrt or sin from the NumPy library are called using the syntax np.sqrt or np.sin; the functions plot or xlabel from the maplotlib.pyplot would be called using plt.plot or plt.xlabel.

Alternatively, the NumPy and MatPlotLib libraries can be called simply by writing

import numpy
import maplotlib.pyplot

When loaded this way, the sqrt function would be called as numpy.sqrt and the plot function would be called as MatPlotLib.pyplot.plot. The import as syntax allows you to define nicknames for numpy and maplotlib.pyplot. Nearly any nickname can be chosen, but the Python community has settled on the nicknames np and plt for numpy and maplotlib.pyplot, so you are advised to stick with those. Using the standard nicknames makes your code more readable.

You can also import a single functions or subset of functions from a module without importing the entire module. For example, suppose you wanted to import just the natural log function log from NumPy. You could write

from numpy import log

To use the log function in a script, you would write

a = log(5)

which would assign the value 1.6094379124341003 to the variable a. If you wanted to import the three functions, log, sin, and cos, you would write

from numpy import log, sin, cos

and would similarly use them without an “np.” prefix. In general, we do not recommend using the the from module import ... way of importing functions. When reading code, it makes it harder to determine from which modules functions are imported, and can lead to clashes between similarly named functions from different modules. Nevertheless, you will see the form used in programs you encounter on the web and elsewhere so it is important to understand the syntax.

Getting help: documentation in IPython shell¶

Help is never far away when you are running the IPython shell. To obtain information on any valid Python or NumPy function, and many MatPlotLib functions, simply type help( function ), as illustrated here

help(range)

Help on class range in module builtins:

class range(object)
 |  range(stop) -> range object
 |  range(start, stop[, step]) -> range object
 |
 |  Return an object that produces a sequence of integers from start (inclusive)
 |  to stop (exclusive) by step.  range(i, j) produces i, i+1, i+2, ..., j-1.
 |  start defaults to 0, and stop is omitted!  range(4) produces 0, 1, 2, 3.
 |  These are exactly the valid indices for a list of 4 elements.
 |  When step is given, it specifies the increment (or decrement).
 |
 |  Methods defined here:
 |
 |  __bool__(self, /)
 |      self != 0
 |
 |  __contains__(self, key, /)
 |      Return key in self.
 |
 |  __eq__(self, value, /)
 |      Return self==value.
 |
 |  __ge__(self, value, /)
 |      Return self>=value.
 |
 |  __getattribute__(self, name, /)
 |      Return getattr(self, name).
 |
 |  __getitem__(self, key, /)
 |      Return self[key].
 |
 |  __gt__(self, value, /)
 |      Return self>value.
 |
 |  __hash__(self, /)
 |      Return hash(self).
 |
 |  __iter__(self, /)
 |      Implement iter(self).
 |
 |  __le__(self, value, /)
 |      Return self<=value.
 |
 |  __len__(self, /)
 |      Return len(self).
 |
 |  __lt__(self, value, /)
 |      Return self<value.
 |
 |  __ne__(self, value, /)
 |      Return self!=value.
 |
 |  __new__(*args, **kwargs) from builtins.type
 |      Create and return a new object.  See help(type) for accurate signature.
 |
 |  __reduce__(...)
 |      helper for pickle
 |
 |  __repr__(self, /)
 |      Return repr(self).
 |
 |  __reversed__(...)
 |      Return a reverse iterator.
 |
 |  count(...)
 |      rangeobject.count(value) -> integer -- return number of occurrences of value
 |
 |  index(...)
 |      rangeobject.index(value, [start, [stop]]) -> integer -- return index of value.
 |      Raise ValueError if the value is not present.
 |
 |  ----------------------------------------------------------------------
 |  Data descriptors defined here:
 |
 |  start
 |
 |  step
 |
 |  stop

Often, the information provided can be quite extensive and you might find it useful to clear the IPython window with the clear command so you can easily scroll back to find the beginning of the documentation. You may have also noticed that when you type the name of a function plus the opening parenthesis, IPython displays a window showing the first dozen lines or so of the documentation on that function.

Programming is a detail-oriented activity¶

Now that you have a little experience with Python and computer programming, it’s time for an important reminder: Programming is a detail-oriented activity. To be good at computer programming, to avoid frustration when programming, you must pay attention to details. A misplaced or forgotten comma or colon can keep your code from working. Note that I did not say it can “keep your code from working well”; it can keep your code from working at all! Worse still, little errors can make your code give erroneous answers, where your code appears to work, but in fact does not! So pay attention to the details!

This raises a second point: sometimes your code will run but give the wrong answer because of a programming error or because of a more subtle error in your algorithm. For this reason, it is important to test your code to make sure it is behaving properly. Test it to make sure it gives the correct answers for cases where you already know the correct answer or where you have some independent means of checking it. Test it in limiting cases, that is, for cases that are at the extremes of the sets of parameters you will employ. Always test your code; this is a cardinal rule of programming.

Exercises¶

A ball is thrown vertically up in the air from a height \(h_0\) above the ground at an initial velocity \(v_0\). Its subsequent height \(h\) and velocity \(v\) are given by the equations

\(\begin{aligned} h &= h_0 + v_0t - \tfrac{1}{2}gt^2 \\ v &= v_0 - gt \end{aligned}\)

where \(g = 9.8\) is the acceleration due to gravity in \(\mathrm{m/s^2}\). Write a script that finds the height \(h\) and velocity \(v\) at a time \(t\) after the ball is thrown. Start the script by setting \(h_0 = 1.2\) (meters) and \(v_0 = 5.4\) (m/s) and have your script print out the values of height and velocity (see printNote). Then use the script to find the height and velocity after 0.5 seconds. Then modify your script to find them after 2.0 seconds.

Write a script that defines the variables \(V_0 = 10\), \(a = 2.5\), and \(z = 4\tfrac{1}{3}\), and then evaluates the expression

\(V = V_0 \left( 1 - \frac{z}{\sqrt{a^2+z^2}} \right) \;.\)

Then find \(V\) for \(z=8\frac{2}{3}\) and print it out (see printNote). Then find \(V\) for \(z=13\) by changing the value of \(z\) in your script.

Write a single Python script that calculates the following expressions:

\(\begin{aligned} \text{1. } \displaystyle a &= \frac{2 + e^{2.8}}{\sqrt{13}-2} \\ \text{2. } \displaystyle b &= \frac{1-(1+\ln 2)^{-3.5}}{1+\sqrt{5}} \\ \text{3. } \displaystyle c &= \sin\left( \frac{2-\sqrt{2}}{2+\sqrt{2}} \right) \end{aligned}\)

After running your script in the IPython shell, typing a, b, or c at the IPython prompt should yield the value of the expressions in (a), (b), or (c), respectively.

A quadratic equation with the general form

\(ax^2+bx+c=0\)

has two solutions given by the quadratic formula

\(x = \frac{-b \pm \sqrt{b^2-4ac}}{2a} \;.\)

4.1. Given \(a\), \(b\), and \(c\) as inputs, write a script that gives the numerical values of the two solutions. Write the constants \(a\), \(b\), and \(c\) as floats, and show that your script gives the correct solutions for a few test cases when the solutions are real numbers, that is, when the discriminant \(b^2-4ac \ge 0\). Use the print function in your script, discussed at the end of Section 2.8.1 chap2:ScriptExmp1, to print out your two solutions.

4.2. Written this way, however, your script gives an error message when the solutions are complex. For example, see what happens when \(a=1\), \(b=2\), and \(c=3\). You can fix this using statements in your script like a = a+0j after setting a to some float value. Thus, you can make the script work for any set of real inputs for \(a\), \(b\), and \(c\). Again, use the print function to print out your two solutions.
